PRELUDE F55 | R62

RAYDN Carbon Wheels, Raw Performance.

Til the end of the line

1230 g
(Wheel-Set)

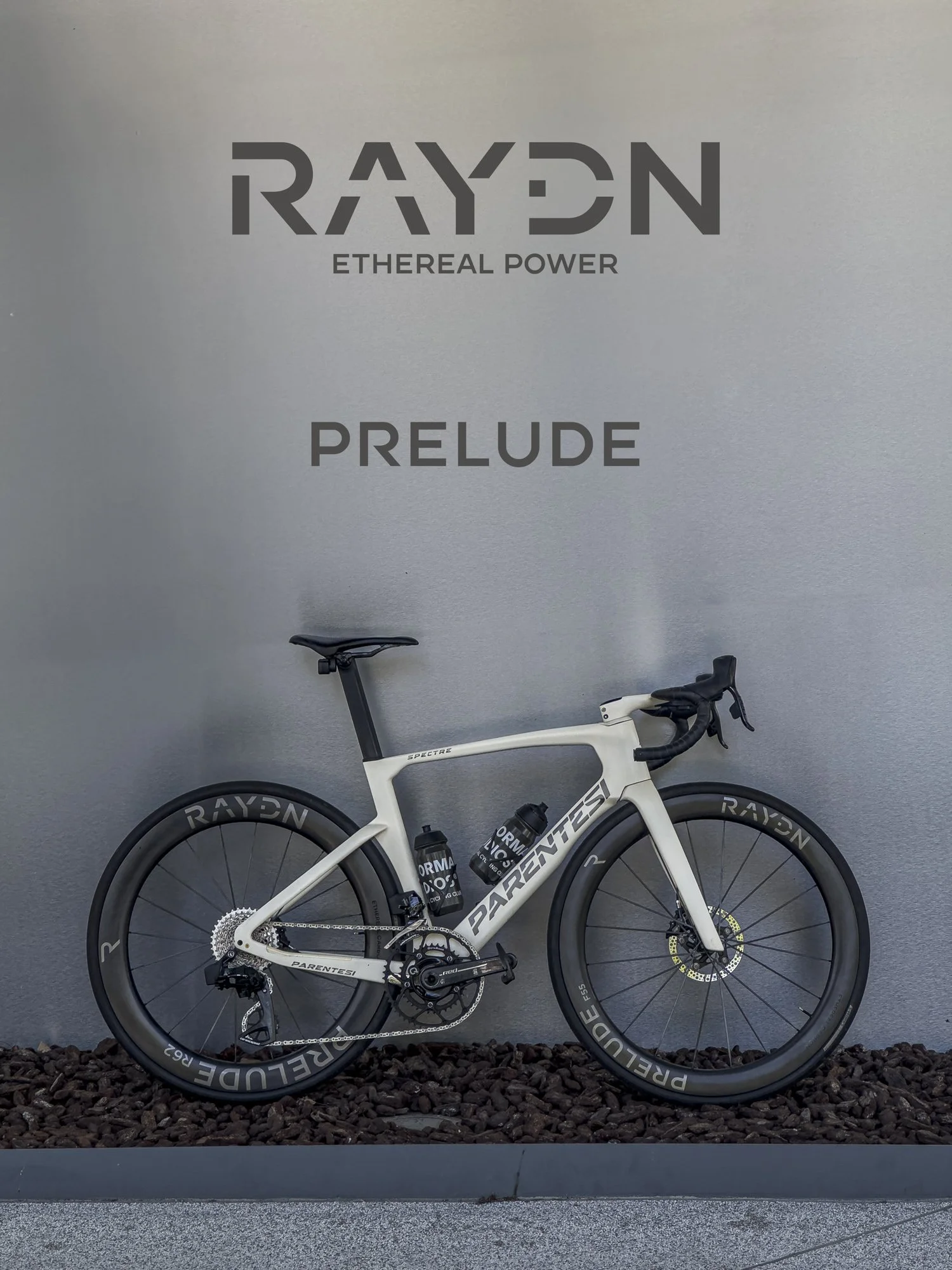

Set the stage for victory with the PRELUDE 55/62 wheel set from RAYDN. Engineered for speed and performance, PRELUDE embodies the spirit of racing excellence, delivering unrivalled acceleration and control on the road.

PRELUDE offers the perfect balance of a stiff, lightweight construction and aerodynamic design, allowing you to unleash your full potential on the racecourse. Just as the word "prelude" heralds the beginning of an epic journey, our PRELUDE wheel-set paves the way for success, propelling you toward the finish line with unmatched speed and precision.

With RAW aesthetics, ultra-lightweight carbon rims, and precision craftsmanship, our first “R” race-line is designed for those who demand the absolute best. Featuring carbon aero spokes and hybrid ceramic bearings, these wheelsets deliver maximum efficiency, redefining control and agility on the road.

Engineered for effortless acceleration, our wheels exemplify ethereal lightness, ensuring superior handling and responsiveness in every situation.

Our 2x10 Carbon Spoke pattern delivering the incredible responsiveness and is designed symmetrically to enhance stability and control, the first riders notice in their very first ride is that controll and confidence. We found that an even 10-spoke layout on each side—paired with a 2.5 mm rear rim offset—provides balanced design for greater handling and confidence.

Optimized for both tubeless and tubed tires, the 21mm wide internal hooked rim enhances safety and compatibility across a broad range of tire pressures. Designed for tire widths between 26mm and 30mm, with 28mm offering the highest aerodynamic performance, these wheels strike the perfect balance between speed and stability.

To meet UCI road racing standards, wheels must withstand an impact of 40 joules ±5% to gain certification. Our “R” race-line far exceeds this benchmark, engineered to endure impacts of at least 80 joules ±5% under UCI test conditions; for durability and performance.

Disk Brake Wheels Only

Weight: 1230 g ± 1.5%

Max. System Weight: 110kg

Rims: ETRTO: 622mm / Hooked Design

front symmetric spoke holes / rear asymmetric 2.5 mm off-set spoke holes

Aero profile T800/T1000 high modulus premium carbon fiber rims

Profile height: front 55 mm / rear 62 mm

Internal Width: 21 mm

External Width: 30 mm

Hub Bearings: Hybrid Ceramic

Tire Type: Tubeless & Clinchers

Tire Width Optimal: 26 to 30 mm

Aero Tire Width Optimal: 28 mm

Tire Pressure Optimal at 70kg rider weight:
75 PSI up to 26 mm / 70 PSI @ 28 mm / 65 PSI @ 30 mm

Tire Pressure max:
120 PSI up to 26 mm / 110 PSI @ 28 mm / 100 PSI @ 30 mm

Spokes: 20 carbon fiber bladed aero spokes 3.8mm

Spoke Tensile Failure Test: min. 4000N

UCI impact resistance passed 80 Joules

Hub edges: 100 mm front, 142 mm rear

Freehub: SRAM XDR or SRAM/Shimano HG11s/12s

Ratchet System: 36T DT-Swiss Compatible Free-Hub

Passion: 100%

SPECIFICATIONS
