EQUILIBRIUM F45 | R50

RAYDN Carbon Wheels, Raw Performance.

One to rule them all

1120 g
(Wheel-Set)

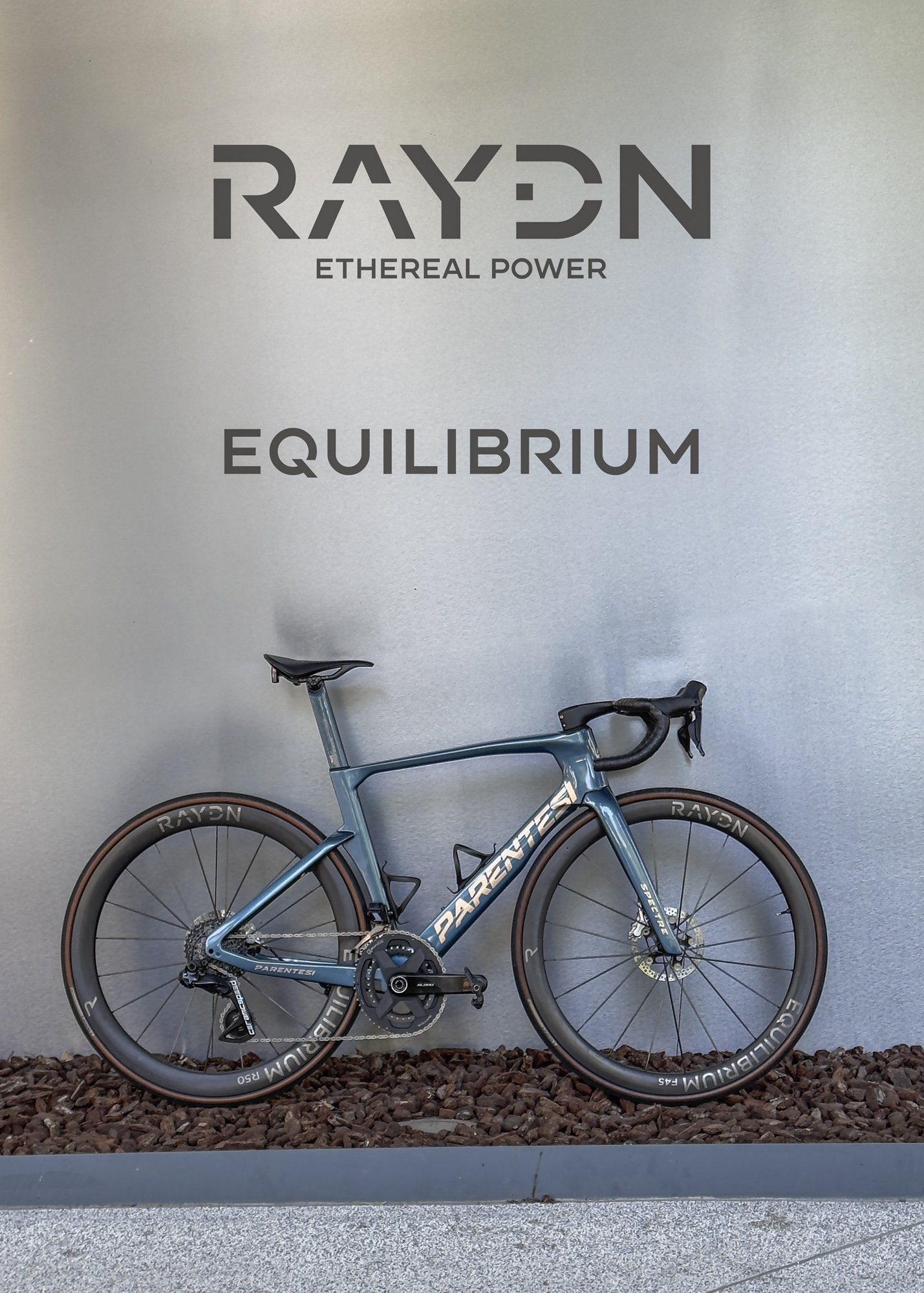

Find your balance with the RAYDN EQUILIBRIUM 45/50 wheel-set from RAIDEN. As the ultimate all-around companion for your cycling adventures, EQUILIBRIUM embodies stability and versatility, offering a seamless blend of performance and reliability.

EQUILIBRIUM delivers exceptional performance across varied terrain, ensuring a smooth and controlled ride in any condition. Just as the word "equilibrium" signifies a state of perfect balance, our EQUILIBRIUM wheel-set provides the ideal harmony of speed, weight, agility, and stability, empowering you to conquer any challenge with confidence.

Two bicycle wheels labeled Eclipse F35 and Eclipse R40 on a dark background.

With RAW aesthetics, ultra-lightweight carbon rims, and precision craftsmanship, our first “R” race-line is designed for those who demand the absolute best. Featuring carbon aero spokes and hybrid ceramic bearings, these wheelsets deliver maximum efficiency, redefining control and agility on the road.

Engineered for effortless acceleration, our wheels exemplify ethereal lightness, ensuring superior handling and responsiveness in every situation.

Our 2x10 Carbon Spoke pattern delivering the incredible responsiveness and is designed symmetrically to enhance stability and control, the first riders notice in their very first ride is that controll and confidence. We found that an even 10-spoke layout on each side—paired with a 2.5 mm rear rim offset—provides balanced design for greater handling and confidence.

Optimized for both tubeless and tubed tires, the 21mm wide internal hooked rim enhances safety and compatibility across a broad range of tire pressures. Designed for tire widths between 26mm and 30mm, with 28mm offering the highest aerodynamic performance, these wheels strike the perfect balance between speed and stability.

To meet UCI road racing standards, wheels must withstand an impact of 40 joules ±5% to gain certification. Our “R” race-line far exceeds this benchmark, engineered to endure impacts of at least 80 joules ±5% under UCI test conditions; for durability and performance.

SPECIFICATIONS

Disk Brake Wheels Only

Weight: 1120 g ± 1.5%

Max. System Weight: 110kg

Rims: ETRTO: 622mm / Hooked Design

front symmetric spoke holes / rear asymmetric 2.5 mm off-set spoke holes

Aero profile T800/T1000 high modulus premium carbon fibre rims

Profile height: front 45 mm / rear 50 mm

Internal Width: 21 mm

External Width: 29 mm

Hub Bearings: Hybrid Ceramic

Tire Type: Tubeless & Clinchers

Tire Width Optimal: 26 to 30 mm

Aero Tire Width Optimal: 28 mm

Tire Pressure Optimal at 70kg rider weight:
75 PSI up to 26 mm / 70 PSI @ 28 mm / 65 PSI @ 30 mm

Tire Pressure max:
120 PSI up to 26 mm / 110 PSI @ 28 mm / 100 PSI @ 30 mm

Spokes: 20 carbon fibre bladed aero spokes 3.8mm

Spoke Tensile Failure Test: min. 4000N

UCI impact resistance passed 90 Joules

Hub edges: 100 mm front, 142 mm rear

Freehub: SRAM XDR or SRAM/Shimano HG11s/12s

Ratchet System: 36T DT-Swiss Compatible Free-Hub
